Introduction

Two years ago we published CARPE DIEM, an Apache HTTPd local root vulnerability. Today we are releasing the details of a similar vulnerability that affects PHP-FPM. Similar not only because they have the same impact and affect the same kind of targets, but also because they originate from the same problem: insecure shared memory usage. The primitive is different though, and the exploitation, as a consequence, is as well.

The vulnerability allows a low-privilege user (such as www-data) to escalate his privileges to root using a bug in PHP-FPM, which has been present for 10 years.

PHP-FPM (FastCGI Process Manager) is the official PHP FastCGI server. It is used in conjunction with an HTTP server such as Apache or NGINX to handle the processing of PHP files. It generally listens for connections over either a UNIX socket or on TCP port 9000. When the HTTP server needs to run a PHP file, it will forward parameters, such as the file path, PHP variables, and configuration to PHP-FPM, which will send back a response.

If you're wondering if you are vulnerable: if you are using Apache and PHP, you might be using PHP-FPM. If you're using NGINX and PHP, you are using PHP-FPM. If you are using PHP-FPM, you are vulnerable.

Overview of the bug

A low-privilege process can read and write an array of pointers used by the main process, running as root, through shared memory. An attacker can leverage this problem to change a 32-bit integer from zero to one in the main process's memory, or clear a memory region. By leveraging the primitive multiple times, it is possible to reach another bug, make the main process execute code, and thus escalate privileges.

Overview of PHP-FPM

The behaviour of PHP-FPM is governed by its configuration; we'll use the standard configuration to explain how it works. YMMV.

Main process and workers

PHP-FPM is a FastCGI server. The main process, which generally runs as root, manages less privileged (www-data, nobody) workers. When a request is received, the main process forwards it to an idle worker for processing. The worker sends back a response. The system is "on demand": if every worker is busy handling a request, the main process can spawn one or several new workers. Conversely, if there is not much traffic, the main process can kill workers to save resources. If a worker somehow crashes or exits, the main process spawns a new process to take its place. By default, PHP-FPM starts with 2 workers, and can handle at most 5 concurrent requests (i.e. 5 concurrent workers).

Scoreboards

In order to know what each worker is doing, each worker manages a scoreboard (struct fpm_scoreboard_proc_s) 1 . These structures contain a PID, the current state of the worker (is it handling a request or idle ? Which PHP file is it processing ?), and a few stats alongside (memory and CPU time used).

pwndbg> p *fpm_worker_all_pools->scoreboard->procs[0] // fpm_scoreboard_proc_s
$8 = {
  {
    lock = 0,
    dummy = '\000' <repeats 15 times>
  },
  used = 1,
  start_epoch = 1619077029,
  pid = 1444,
  requests = 0,
  request_stage = FPM_REQUEST_ACCEPTING,
  ...
  request_uri = '\000' <repeats 127 times>,
  query_string = '\000' <repeats 511 times>,
  request_method = '\000' <repeats 15 times>,
  ...
}

Example of a worker scoreboard

Additionally, the main process aggregates some of these infos in a main scoreboard (struct fpm_scoreboard_s). In there, you can find the number of active workers (active), the number of idle workers (idle), the timestamp at which PHP-FPM started (start_epoch)...

pwndbg> p *fpm_worker_all_pools->scoreboard // fpm_scoreboard_s
$7 = {
  {
    lock = 0,
    dummy = '\000' <repeats 15 times>
  },
  pool = "www", '\000' <repeats 28 times>,
  pm = 2,
  start_epoch = 1619077029,
  idle = 2,
  active = 0,
  active_max = 0,
  requests = 0,
  max_children_reached = 0,
  lq = 0,
  lq_max = 0,
  lq_len = 0,
  nprocs = 5, // size of the procs array
  free_proc = 2,
  slow_rq = 0,
  procs = 0x7ff114945078 // fpm_scoreboard_proc_s*[] // <---- [1]
}

Main scoreboard

One of these fields is of interest: the last field of the structure, procs, is an array of pointers to the sub-scoreboards described right before. When the root process needs to access a sub-scoreboard, it refers to this array and dereferences its elements.

This implies that the main process has access to the sub-scoreboards, although they are maintained by workers. How can this be ?

IPC through SHM

When PHP-FPM starts, it creates a shared memory mapping to store sub-scoreboards. Along with the main process, each worker can read and modify the data in this mapping. It seems insecure: as a worker, you could for instance modify the scoreboard of other workers, and pretend they are busy, which could DOS the application. However, this is not dramatic.

Here's what is: the main scoreboard is also located in the SHM. The pointers in fpm_scoreboard_s.procs[] are therefore writable by any worker. When the root process tries to use sub-scoreboards, we can make it read or write outside the SHM, right inside its own memory !

As a quick test, you can set scoreboard->procs[0] to an unmapped address from a worker process and watch the main process crash almost instantly, as it tries to dereference it.

Using PHP sandbox escape bugs, like the one described here, one can get full control over a worker's memory, and use it to modify the fpm_scoreboard_s.procs[] pointers, in order to make the main process use fake fpm_scoreboard_proc_s structures.

However, unlike with the Apache HTTPd exploit, there is no easy way to reach an arbitrary function call from this bug. In fact, there's actually not much we can do with it! We'll go over this in the next section.

Process scoreboard management and the bad primitive

In order to understand what we can do with these pointers, we need to understand how PHP-FPM manages sub-scoreboards during the shutdown and creation of workers.

PHP-FPM maintains, while running, a linked list of running children (workers), each represented by a fpm_child_s structure. They are stored on the heap (libc's, not PHP's).

Additionally, PHP-FPM wishes to collect a few stats about its running workers. Therefore, when it starts, the main process allocates, in the shared memory, the main scoreboard (fpm_scoreboard_s), and a number of fpm_scoreboard_proc_s structures equal to the maximum number of workers (by default, 5). It then fills the fpm_scoreboard->procs[] array with pointers to these.

Before it spawns a new worker, the main process needs to find it a scoreboard to use. To do so, picks an unused sub-scoreboard, marks it as used, and links it to the worker.

When a worker dies, it does not need a sub-scoreboard anymore. PHP-FPM finds its index through another structure, and then wipes the whole structure.

Both operations happen in the main process, as root. They are respectively done by the following functions: fpm_scoreboard_proc_alloc() and fpm_scoreboard_proc_free(). Let's rapidly check the code for both functions.

// fpm_scoreboard.c

int fpm_scoreboard_proc_alloc(struct fpm_scoreboard_s *scoreboard, int *child_index) /* {{{ */
{
    int i = -1;

    [...]

    /* first try the slot which is supposed to be free */
    if (scoreboard->free_proc >= 0 && (unsigned int)scoreboard->free_proc < scoreboard->nprocs) {
        if (scoreboard->procs[scoreboard->free_proc] && !scoreboard->procs[scoreboard->free_proc]->used) {
            i = scoreboard->free_proc;
        }
    }

    // [1]
    if (i < 0) { /* the supposed free slot is not, let's search for a free slot */
        zlog(ZLOG_DEBUG, "[pool %s] the proc->free_slot was not free. Let's search", scoreboard->pool);
        for (i = 0; i < (int)scoreboard->nprocs; i++) {
            if (scoreboard->procs[i] && !scoreboard->procs[i]->used) { /* found */
                break;
            }
        }
    }

    /* no free slot */
    if (i < 0 || i >= (int)scoreboard->nprocs) {
        zlog(ZLOG_ERROR, "[pool %s] no free scoreboard slot", scoreboard->pool);
        return -1;
    }

    scoreboard->procs[i]->used = 1; // [2]
    *child_index = i; // [3]

    /* supposed next slot is free */
    if (i + 1 >= (int)scoreboard->nprocs) {
        scoreboard->free_proc = 0;
    } else {
        scoreboard->free_proc = i + 1;
    }

    return 0;
}

The first function will find an unused structure 1, mark it as used 2, and return its index 3.

void fpm_scoreboard_proc_free(struct fpm_scoreboard_s *scoreboard, int child_index) /* {{{ */
{
    if (!scoreboard) {
        return;
    }

    if (child_index < 0 || (unsigned int)child_index >= scoreboard->nprocs) {
        return;
    }

    if (scoreboard->procs[child_index] && scoreboard->procs[child_index]->used > 0) { // [4]
        memset(scoreboard->procs[child_index], 0, sizeof(struct fpm_scoreboard_proc_s)); // [5]
    }

    /* set this slot as free to avoid search on next alloc */
    scoreboard->free_proc = child_index;
}

The second function will receive the index of the sub-scoreboard of a dying child, and clear it 5, but only if its used flag is superior to zero 4.

To speed up the allocation process, the field scoreboard->free_proc keeps track of the sub-scoreboard that was freed last. When a sub-scoreboard needs to be allocated, this index will be checked first.

The array containing addresses of every sub-scoreboard, scoreboard->procs[], is located in the shared memory: it can be modified by any worker process. Furthermore, the process of allocating a sub-scoreboard can be easily triggered as a worker by creating several concurrent requests, and freeing a sub-scoreboard can be done by killing a worker.

As such, we can trigger those functions as an attacker: we can use this to make the main process change a 32-bit integer from zero to one (using 2), or clear a huge memory region (using 5).

An example

Let's say we want to set an integer at address 0x555600000038 in the main process' heap to 1. It is originally 0.

We set scoreboard->procs[2] to 0x555600000028 (used is at offset 0x10), and kill the associated worker. fpm_scoreboard_proc_free(scoreboard, 2) is called, and since scoreboard->procs[2]->used (0x555600000038) is zero, it just sets scoreboard->free_proc to 2 and returns.

Then, before spawning a new worker, fpm_scoreboard_proc_alloc() gets called. It checks scoreboard->procs[scoreboard->free_proc]->used, sees that is it zero, and sets it to one. It then sets scoreboard->free_proc to 2+1=3 and returns.

However, if, for some reason, the integer at address 0x555600000038 happens to be not zero, the impact is very different. fpm_scoreboard_proc_free() checks scoreboard->procs[2]->used, sees that it is nonzero, and therefore calls memset(0x555600000028, 0, 1168), destroying a significant part of memory around (and mostly after) the address.

This is a risky primitive: due to the small size of internal PHP-FPM structures, 1168 represents a huge size. If we somehow mess up, we could destroy important data, and probably crash the main process.

However, we got our primitives: we make an element of scoreboard->procs[] point to wherever we want, and kill the associated worker. Depending on the value of its used field, it will either be set to 1, or clear 1168 bytes around it.

From now on, these primitives will be named respectively the set-0-to-1 and clear-1168-bytes primitives.

Exploitation

From now on, we assume that we have complete read/write in workers using a PHP sandbox escape (e.g. SplDoublyLinkedList::offsetUnset). We can force the creation of workers by sending several concurrent requests, and kill any worker by sending it a SIGKILL signal.

We want to escalate from a full read-write access in a worker process to code execution in the root process.

To do so, we have a few things going for us:

  • Since workers are forked from the main process, they share the same memory mappings (ASLR is insignificant).
  • Their heap is similar as well: although a lot of allocs/deallocs happen when a worker spawns, we can still get a decent idea of the contents of the heap of the main process by reading its child's memory.
  • Finally, if we somehow crash a child during the exploitation, the main process will restart it.

However, we also have a few problems:

  • The primitive is bad: if used does not have the value we expect, we'll destroy 1168 bytes of memory instead of just changing one bit from 0 to 1; generally, this means a crash. If the main process crashes, it's game over for you and the website. Even if we manage to not mess it up, we can clear a huge memory range or change a zero into a one. That's not much to work with.
  • After a fork, the worker will free lots of structures, because they are only used by the main process. If somehow the newly-spawned worker has an incorrect heap state when it spawns, it will exit or crash. And the main process will therefore spawn a new, still messed up, worker. Which will exit again. This will go on indefinitely, and cause a DOS.
  • In order to control our primitive, we will have to spawn and kill workers in rapid succession. If a normal user browses the website at an inconvenient time, he might mess up our exploit, which might crash the root process.

In short, there are many ways to destroy the main process, and there aren't many ways to get code execution.

Tailoring the primitive

Although we have a decent idea of the main process' memory layout, we can't always be 100% sure that a given 32-bit integer is zero. Thus, our two primitives might get mixed-up, and we may as a result crash the process.

To avoid this, we first kill a worker, and then change the scoreboard->procs[] element only after fpm_scoreboard_free_proc() has been killed. This can easily be done by monitoring the value of scoreboard->free_proc, which is changed at the end of the function. Then, as soon as fpm_scoreboard_free_alloc() has been called, we reset the pointer (again, we can monitor free_proc for this).

With a few additional tricks involving the scoreboard structure and out-of-scope of the article, we can garantee that, although we don't always win the race, we never break anything.

Our set-0-to-1 primitive just got a little better: we cannot trigger memset() by mistake anymore, and have one less way to destroy PHP-FPM. Other are coming.

Reaching the heap: setting catch_workers_output

Now that our set-0-to-1 primitive is safe, we need to find a use for it. By itself, it is not much use: we can corrupt a length, or a chunk size for instance, but we cannot create arbitrary data in the main process (except in the shared memory segment). In other words, maybe we can make something bigger, but we can't make it contain data we control.

We therefore need a way to send data to the main process, and there's a perfect solution in the worker pool configuration:

pwndbg> p *fpm_worker_all_pools->config
$2 = {
  name = 0x559e247bf020 "www",
  prefix = 0x0,
  user = 0x559e247b73d0 "www-data",
  group = 0x559e247b73f0 "www-data",
  listen_address = 0x559e247b73a0 "/run/php/php7.4-fpm.sock",
  listen_backlog = 511,
  listen_owner = 0x559e247b7440 "www-data",
  listen_group = 0x559e247b7460 "www-data",
  listen_mode = 0x0,
  listen_allowed_clients = 0x0,
  process_priority = 64,
  process_dumpable = 0,
  pm = 2,
  ...
  rlimit_files = 0,
  rlimit_core = 0,
  chroot = 0x0,
  chdir = 0x0,
  catch_workers_output = 0, // <-----------------
  decorate_workers_output = 1,
  clear_env = 1,
  security_limit_extensions = 0x559e247b7480 ".php .phar",
  env = 0x0,
  php_admin_values = 0x0,
  php_values = 0x0,
  apparmor_hat = 0x0,
  listen_acl_users = 0x0,
  listen_acl_groups = 0x0
}

There are a lot of things in there, but one looks very interesting: catch_workers_output. Its use is to aggregate the output from workers into a single log file, php-fpm.log.

As such, when set, if a worker writes to stdout or stderr, the data is sent to the root process, which buffers it until a newline is encountered. When this happens, the line is stored into the log file, and the buffer gets flushed. This buffer is by default of fixed size, 1024, and allocated on the heap.

catch_workers_output is OFF (0) by default. We use the primitive to set it to 1. We can now send almost arbitrary data in the main process' heap; we just need to write into workers' stderr.

Good enough ?

Now that we can send (almost) arbitrary data in the root process' heap, and have two primitive, we could easily go for an heap attack. By using the set-0-to-1 primitive, we could for instance change a chunk size; by using the other primitive, we could clear a tcache pointer LSB...

An example: we could use 3 workers to force the allocation of 3 contiguous log buffers, and free them in a chosen order. Since they all fit in the tcache, we could overwrite the LSB of the pointer of the first chunk using our clear-1168-bytes primitive, and we'd have a good starting point.

However, this attack, along with many others, rely on having, at some point, an unstable heap. If a legitimate client were to send a request at this point in time, it would probably have very bad effects: crash, DOS, ...

Even using different approaches, the conclusion remains the same: however good an exploitation strategy is in theory, if legitimate requests (and their potential errors) were handled at critical stage of the exploit, a crash would be very likely. We need to find a way to keep the server to ourselves.

All your bases

Between each step of the exploit, a number of legitimate requests can happen. This causes a few problems.

Persistent worker control

If we were to send an FCGI request for each "action" we want a worker to perform, there'd be no garantee that the process that executes the first request is the same as the one handling the second one. Furthermore, as legitimate requests get intertwined with ours, we often get unpredictable behaviour.

We therefore build the exploit as a python C&C server which spawns PHP workers and keeps them alive for as long as required. The server and the workers communicate through a custom IPC mechanism (read: a JSON file and a few while(true) loops).

This enables us to create workers, make them execute commands, and then stop or kill them at will. In other words, we know which process executes which actions, and that it does not execute anything else in between.

However, standard requests can still be assigned to workers we do not control, or slip in when we kill a worker and try to take control of a new one.

Capping the number of workers

Whenever a new worker is forked from the main process, it gets rid of unneeded structures. Such structures include all workers' zlog_stream and buffer. It'll also allocate new stuff, which will trigger malloc_consolidate(). In each of our exploitation ideas, the heap is, for very short times, in an invalid state: a chunk header could be invalid, an entry could be present twice in the tcache... Say a worker gets spawned at this time. It inherits the bad heap, tries to use it... and the libc shouts an error and raises SIGABRT. Usually we would not care: PHP-FPM restarts its crashed children. However, since we enabled catch_workers_output, the error message is sent back to the main process, which, as it's supposed to, creates a log buffer to receive the error. The heap being broken in main process as well, the main process ends up crashing too!

Even if the worker process crashes silently, the main process respawns it before doing anything else. It'll crash again, resulting an endless loop of birth and death for processes.

Consequently, we need a way to block the main process from spawning workers. Remember, before spawning a worker, the main process will make sure that a sub-scoreboard is available for it to use. An obvious idea is to set the ->used flag of every scoreboard->procs[] to 1. However, this proves really hard when the main process repeatedly spawns new workers: you need to set it right after the structure has been nulled. Luckily, fpm_scoreboard_proc_free() and fpm_scoreboard_proc_alloc() behave a little bit differently:

// fpm_scoreboard.c

int fpm_scoreboard_proc_alloc(struct fpm_scoreboard_s *scoreboard, int *child_index) /* {{{ */
{
    [...]

    if (i < 0) { /* the supposed free slot is not, let's search for a free slot */
        zlog(ZLOG_DEBUG, "[pool %s] the proc->free_slot was not free. Let's search", scoreboard->pool);
        for (i = 0; i < (int)scoreboard->nprocs; i++) {
            if (scoreboard->procs[i] && !scoreboard->procs[i]->used) { /* found */ // <--- HERE
                break;
            }
        }
    }

    [...]
}

void fpm_scoreboard_proc_free(struct fpm_scoreboard_s *scoreboard, int child_index) /* {{{ */
{
    if (scoreboard->procs[child_index] && scoreboard->procs[child_index]->used > 0) { // <--- HERE
        memset(scoreboard->procs[child_index], 0, sizeof(struct fpm_scoreboard_proc_s));
    }
}

If you look at the code again, you'll notice that fpm_scoreboard_proc_free() checks that used is superior to zero, while fpm_scoreboard_proc_alloc() checks that it is different from zero. As such, setting used to -1 blocks both functions from doing anything.

This allows us to block workers from spawning, and thus cap the maximum number of workers. For instance, in the default configuration, which allows 5 concurrent workers at most, if we set used to -1 on 3 sub-scoreboards, PHP-FPM will only be able to spawn 2.

Furthermore, when we kill a worker, we can even preemptively set its used flag to -1, making sure PHP won't respawn one right after.

Another consequence is that we can now tailor our exploit for the default configuration of 5 maximum concurrent workers. If the targeted PHP-FPM service happens to allow more, we'll just cap this number back to 5. We can build a configuration-agnostic exploit.

Closed FD

Because of our hotfix of catch_workers_output, when PHP-FPM spawns workers at a very heavy rate, a race condition can happen where the fd supposed to receive CGI requests is closed right before it is used. This causes the worker to exit straight away (if it can't receive requests, what's the point of being alive), leading the main process to respawn it. However, the immediate respawn yields exactly the same problem, and the worker exits again. Infinite loop. Luckily, this can be solved by blocking the spawn of workers for a few moments, using the same technique as described above.

There's one thing left to tackle: legitimate requests which produce errors.

Error-free PHP

Let's say it: PHP is probably one of the web language that produces the most errors without crashing. Warning, Notice, Deprecation, the list goes on.

Those errors become annoying as soon as we enable catch_workers_output: they get written to stderr, and as such are transfered to the main process, which will create log streams and buffers to store them. Since these heap chunks are the only we can control, we'd like to keep them to ourselves.

Luckily, before a PHP error is written to an FD, lots of things happen. Here's an example stack trace in a worker process which yields an error:

pwndbg> bt
...
#2  0x00007f8b43e71cb8 in persistent_error_cb (type=2, error_filename=0x4121d7c0 "/var/www/html/gid.php", error_lineno=6, message=0x7f8b43c02200) at ./ext/opcache/ZendAccelerator.c:1671
#3  0x000055e53ff5069c in zend_error_impl (orig_type=orig_type@entry=2, error_filename=0x4121d7c0 "/var/www/html/gid.php", error_lineno=<optimized out>, message=message@entry=0x7f8b43c02200) at ./Zend/zend.c:1339
#4  0x000055e53ff50e6c in zend_error_zstr (type=type@entry=2, message=message@entry=0x7f8b43c02200) at ./Zend/zend.c:1530
#5  0x000055e53ff4c348 in php_verror (docref=<optimized out>, params=<optimized out>, type=2, format=<optimized out>, args=args@entry=0x7fff7e7df170) at ./main/main.c:1064
#6  0x000055e53ff4c6e9 in php_error_docref1 (docref=docref@entry=0x0, param1=param1@entry=0x7f8b43c61010 "/etc/shadow", type=type@entry=2, format=format@entry=0x55e5401fc498 "%s: %s") at ./main/main.c:1088
#7  0x000055e5400c8d64 in php_stream_display_wrapper_errors (wrapper=wrapper@entry=0x55e540314320 <php_plain_files_wrapper>, path=path@entry=0x40b99ff8 "/etc/shadow", caption=caption@entry=0x55e5401fecf6 "Failed to open stream") at ./main/streams/streams.c:213
...
#19 0x000055e53ff6ccae in _start () at ./ext/standard/file.c:2428

In persistent_error_cb(), we have the following code:

// ext/opcache/ZendAccelerator.c
static void persistent_error_cb(int type, const char *error_filename, const uint32_t error_lineno, zend_string *message) {
    if (ZCG(record_warnings)) { // [1]
        zend_recorded_warning *warning = emalloc(sizeof(zend_recorded_warning));
        warning->type = type;
        warning->error_lineno = error_lineno;
        warning->error_filename = zend_string_init(error_filename, strlen(error_filename), 0);
        warning->error_message = zend_string_copy(message);

        ZCG(num_warnings)++;
        ZCG(warnings) = erealloc(ZCG(warnings), sizeof(zend_recorded_warning) * ZCG(num_warnings)); // [2]
        ZCG(warnings)[ZCG(num_warnings)-1] = warning;
    }
    accelerator_orig_zend_error_cb(type, error_filename, error_lineno, message);
}

ZCG(some_key) expands to accel_globals.some_key. This accel_globals structure is inherited from the main process, and contains many empty fields, like ZCG(record_warnings) 1 and ZCG(warnings) 2. By setting both to 1 using our set-0-to-1 primitive, each worker process will inherit the values. As a consequence, any PHP error will cause persistent_error_cb() to enter the if block, and will end up calling erealloc() with 1 at its first parameter, thus crashing the worker. Since the worker crashes before it writes to stderr, the error is never received by the main process, and no heap chunks are allocated.

Using all these tweaks, we are able to gracefully control which worker executes what, how many workers spawn, and block PHP errors from messing up our exploit.

Problem-free exploitation tactics

With all these problems behind us, we are ready to find a valid exploitation idea. Remember the overlapping chunk attack discussed in the previous section ?

In practice, this is way harder: since we hotfixed catch_workers_output, PHP-FPM did not get the chance to set up the FDs it needs to interact with the workers. As such, some workers can only send data to the main process using stdout, other only with stderr. Others cannot send anything. Even worse, sometimes, workers write on behalf of others. It makes it really hard to have three contiguous chunks. And this is only the first requirement of our attack.

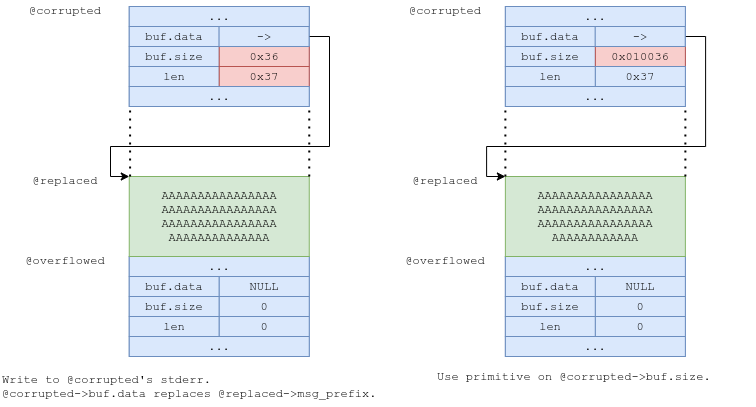

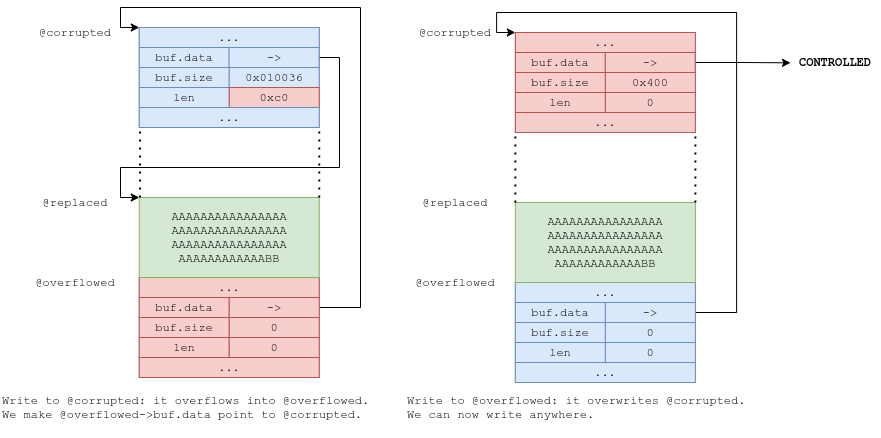

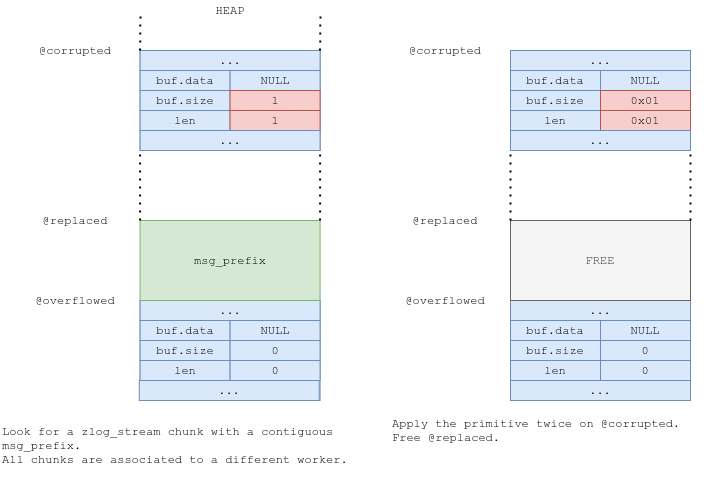

Managing streams: zlog_stream

In order to manage stderr buffers in the main process, PHP-FPM allocates, for each worker, another structure: zlog_stream. It contains the address of the buffer, its size, the number of characters written into it, etc.

Let's look at a bit more.

pwndbg> p *fpm_worker_all_pools->children->next->log_stream
$1 = {
  ...
  child_pid = 1844634,
  function = 0x0,
  buf = {
    data = 0x0, // buffer pointer
    size = 0 // buffer size
  },
  len = 0, // position of the write cursor in the buffer
  buf_init_size = 1024, // default size to allocate buffer with
  ...
  msg_prefix = 0x564794d2a860 "[pool www] child 1844634 said into stderr: ",
  ...
}

Example of zlog_stream structure.

When a worker sends its first bytes to stderr, the zlog_stream gets created. At first, no buffer gets allocated: stream->buf.data is NULL, and stream->buf.size is 0. The position of the cursor, stream->len, is also zero.

When stderr is not an empty line, the log stream creates a buffer to store the sent characters. Sending test\n results in the following changes:

pwndbg> p *fpm_worker_all_pools->children->next->log_stream
$1 = {
  ...
  child_pid = 1844634,
  function = 0x0,
  buf = {
    data = 0x55ec5bed7a40 "[31-May-2021 16:10:35] WARNING: [pool www] child 1844635 said into stderr: \"test\"\n",
    size = 1024
  },
  len = 48,
  buf_init_size = 1024, // default size to allocate buffer with
  ...
  msg_prefix = 0x564794d2a860 "[pool www] child 1844634 said into stderr: ",
  ...
}

Example of zlog_stream structure.

A buffer of size 1024 was created, and our 4-letter payload was written, but with a little twist: a prefix was added by PHP-FPM. It does this so that, when this string finally gets written into the log file, one can to find out which worker wrote what.

Now that we have a basic (but sufficient) overview of log streams, lets dive into the code responsible for appending data to a buffer.

Unreachable heap overflow

As mentioned previously, whenever a worker writes to stderr, the first step achieved by the main process is to create a zlog_stream structure (if it has not been done already).

After this, it reads from the corresponding FD, and calls zlog_stream_str(), which, if something was read, calls zlog_stream_buf_append() 1:

static ssize_t zlog_stream_buf_append(
        struct zlog_stream *stream, const char *str, size_t str_len) // [1]
{
    int over_limit = 0;
    size_t available_len, required_len, reserved_len;

    if (stream->len == 0) {
        stream->len = zlog_stream_prefix_ex(stream, stream->function, stream->line); // [2]
    }

    /* msg_suffix_len and msg_quote are used only for wrapping */
    reserved_len = stream->len + stream->msg_suffix_len + stream->msg_quote;
    required_len = reserved_len + str_len;
    if (required_len >= zlog_limit) { // [3]
        over_limit = 1;
        available_len = zlog_limit - reserved_len - 1;
    } else {
        available_len = str_len;
    }

    if (zlog_stream_buf_copy_cstr(stream, str, available_len) < 0) { // [4]
        return -1;
    }

    if (!over_limit) {
        return available_len;
    }

    ...
    return available_len;
}

Let's review the arguments: stream is the log stream responsible for the worker, str contains the bytes written to stderr, and str_len the number of bytes written.

If nothing has been written to the buffer yet (stream->len is zero), zlog_stream_prefix_ex() gets called. If stream->buf.data is not allocated yet, this is done, with size stream->buf_init_size (1024). After this, stream->msg_prefix is added to the beginning of the message, and len is incremented accordingly 2.

Then, PHP-FPM verifies that the total size required to store the data is not over the global maximum, zlog_limit 3. This is an integer which is equal to 1024. This is as simple as this: you cannot write more than 1024 bytes in stream->buf.data, ever.

Then comes the call to zlog_stream_buf_copy_cstr() 4:

static inline ssize_t zlog_stream_buf_copy_cstr(
        struct zlog_stream *stream, const char *str, size_t str_len) /* {{{ */
{
    if (stream->buf.size - stream->len <= str_len /* [5] */ && !zlog_stream_buf_alloc_ex(stream, str_len) /* [6] */) {
        return -1;
    }

    memcpy(stream->buf.data + stream->len, str, str_len); // [7]
    stream->len += str_len;

    return str_len;
}

If there is not enough size remaining in the buffer5, it is reallocated6. We enter the last function, zlog_stream_buf_alloc_ex():

static zlog_bool zlog_stream_buf_alloc_ex(struct zlog_stream *stream, size_t needed)  /* {{{ */
{
    char *buf;
    size_t size = stream->buf.size ?: stream->buf_init_size;

    if (stream->buf.data) {
        size = MIN(zlog_limit, MAX(size * 2, needed));
        buf = realloc(stream->buf.data, size);
    } else {
        size = MIN(zlog_limit, MAX(size, needed));
        buf = malloc(size);
    }

    if (buf == NULL) {
        return 0;
    }

    stream->buf.data = buf;
    stream->buf.size = size;

    return 1;
}

As you can see, an horrible error happens: the buffer is (re)allocated in function of needed, while stream->len is completely disregarded. This causes an overflow on the memcpy() call 7 of the parent function, which goes as far as stream->len + str_len, while the size of the buffer is str_len.

However, as previously mentioned, when the first bytes of stderr make their way to the main process, a prefix will be prepended, thus creating a buffer of size 1024 2. The code snippet right after forbids us from writing more than 1024 bytes into a buffer; this prevents us from triggering the overflow in a normal situation.

Faking the streams, getting root

Heap overflow

We still have one thing going for us: our beloved set-0-to-1 primitive.

We can spoof stream->len and stream->buf.size using it, but zlog_limit acts as an upper bound. As such, when they are zero, we can only give them one of 3 possible values: 1, 0x100, and 0x101 (because 0x10000 > zlog_limit).

Let's say we set both to L, and we write N bytes to stderr (with L + N < zlog_limit - 2). This happens:

  1. zlog_stream_buf_append(stream, str, N).
  2. zlog_stream_prefix_ex() is not called, and stream->buf.data stays NULL.
  3. required_len < zlog_limit, thus available_len = N.
  4. zlog_stream_buf_copy_cstr(stream, str, N) called.
  5. Since both buf.size and len are equal, the check is always true.
  6. zlog_stream_buf_alloc_ex(stream, N) gets called, and it allocates N bytes.
  7. memcpy(stream->buf.data + L, str, N) is called, overflowing of L bytes.

We can thus create a log buffer of any size N, and overflow L (1, 0x100 or 0x101) bytes after it.

However, the objects contained in the heap are pretty small; these overflow sizes are either way too tiny or a little too much for our liking. We need to go a little bit further. First, we exploit with L=1, and we obtain the following log_stream structure:

stream->buf.data = malloc(N)
stream->buf.size = N
stream->len = N + 1

Then, we can apply the primitive again on the third byte of buf.size. We get:

stream->buf.data = malloc(N)
stream->buf.size = 0x10000 | N
stream->len = N + 1

Then, if we write M additional bytes to stderr, we have:

  1. zlog_stream_buf_append(stream, str, M).
  2. zlog_stream_prefix_ex() is not called
  3. required_len < zlog_limit, thus available_len = M.
  4. zlog_stream_buf_copy_cstr(stream, str, M) called.
  5. Since buf.size is huge, and len is small, the check is always false.
  6. zlog_stream_buf_alloc_ex(stream, N) not called
  7. memcpy(stream->buf.data + 1 + N, str, M) is called, overflowing of 1 + M bytes.

We now have an overflow of size M + 1, on a buffer of size N, with both variables almost arbitrary.

Arbitrary write

Creating a log stream will yield a zlog_stream chunk (0x80), and a msg_prefix chunk (0x40). We can create one for any worker. We create as many as possible, and look for a stream chunk (refered to as @overflowed) which is immediately preceeded by either a stream chunk or a msg prefix chunk, @replaced. We also pick another log stream, which we name @corrupted.

By applying the set-0-to-1 primitive to @corrupted->buf.size and @corrupted->len, we can allocate a chunk of any size N by sending N bytes to @corrupted's stderr. We use this to allocate where @replaced was located. @corrupted->buf.data now points on the chunk right before @overflowed.

We now apply the primitive one last time, so that @corrupted->buf.size gets incremented by 0x10000. We can now write out-of-bounds, i.e. overwrite @overflowed. We can make its buf.data point to anything ! However, we can only do it once.

We therefore make @overflowed->buf.data point to @corrupted. By writing in @overflowed's stderr, we can modify @corrupted (zlog_stream), and the address its buffer points to. We can then write to @corrupted's stderr to write what we want, where we want it.

This way, we have one log stream that writes another: we got recurrent arbitrary write. From there, we can fix the configuration, the heap, and finally overwrite function pointers to get code execution.

Demo

Vulnerable versions

The exploit technique documented here makes use of a feature that appeared in PHP 7.2. However, the pointers in the SHM have been present from the first implementation, dating from PHP 5.3.7 !

The bug was patched by converting scoreboard->procs to an array of scoreboards (no pointers anymore) and making sure scoreboard->nprocs only gets used by workers. You can find the main commit here. The patched release is PHP-8.0.12.

Conclusion

Due to the growing adoption of NGINX instead of Apache, a good look at PHP-FPM was in order. An oversight in the design of the shared memory region lead to half-decent exploitation primitives, which in turn lead to a root privilege escalation.

The exploit will be available at a later date.
